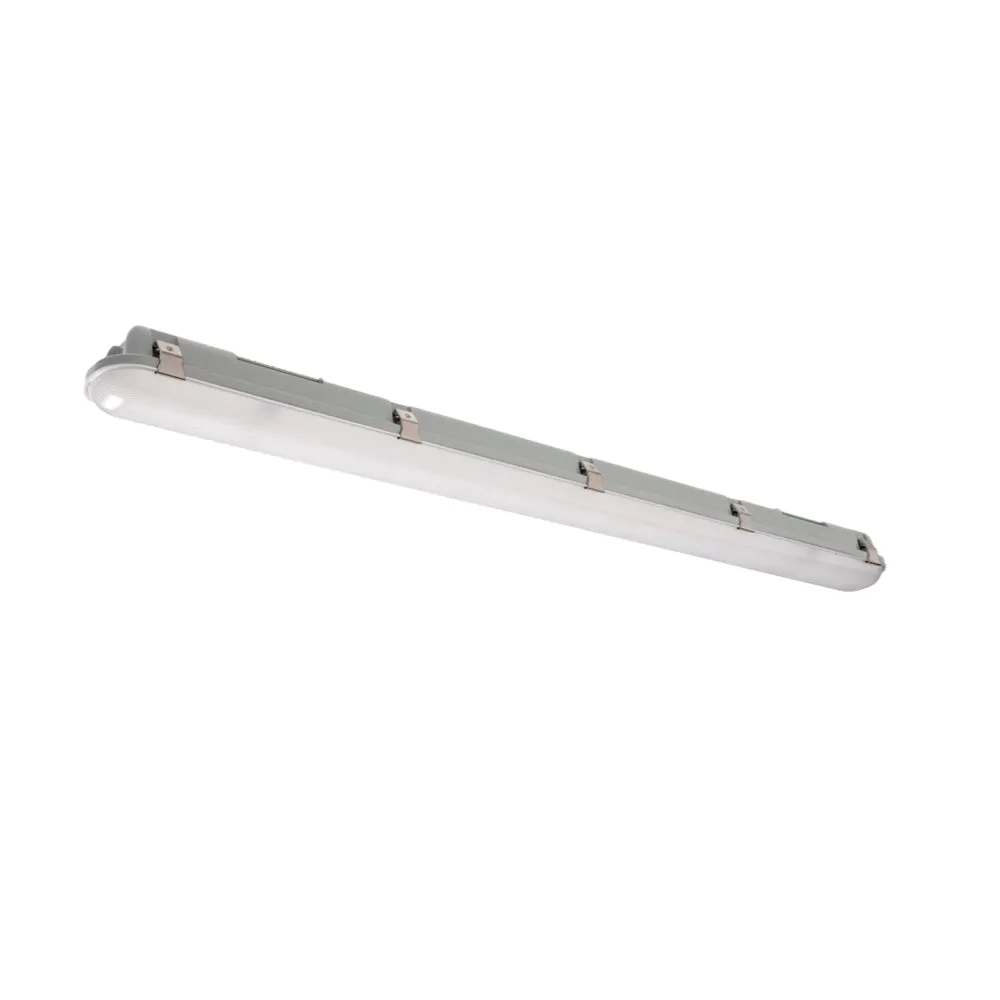

FSC Lighting L27600 Series LED Vaportite

The L27600 LED Vaportite is designed to minimize horizontal surfaces and latch pockets prone to retaining debris. Perfect for applications requiring wash-ability and hose down.

Features

• Applications: Ideal for use in food processing facilities, cold & freezer storage, car washes, canopies, manufacturing, health clubs, laundry and distribution centers.
• Construction: Polycarbonate diffused lens and polycarbonate enclosure. Stainless steel latches and continuous poured-in-place gasket seal to protect from most hostile environments
• Mounting: Stainless steel mounting brackets included. Various mounting options available including suspension, pendant, and surface mount. Cord and plug options offered.
• Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency.
• Operating Temperature: Suitable for -40°C - 40°C Ambient when fixture is surface mounted or up to 45°C when fixture is suspended at least 18" from ceiling.
• Lumen Maintenance: L70 rating of 100,000 hours
• Warranty: Five-year warranty. Terms and Conditions Apply.
• Certification: UL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 listed1 . RoHS compliant, NSF and IP65 rated. Lenses are IK08 Rated.

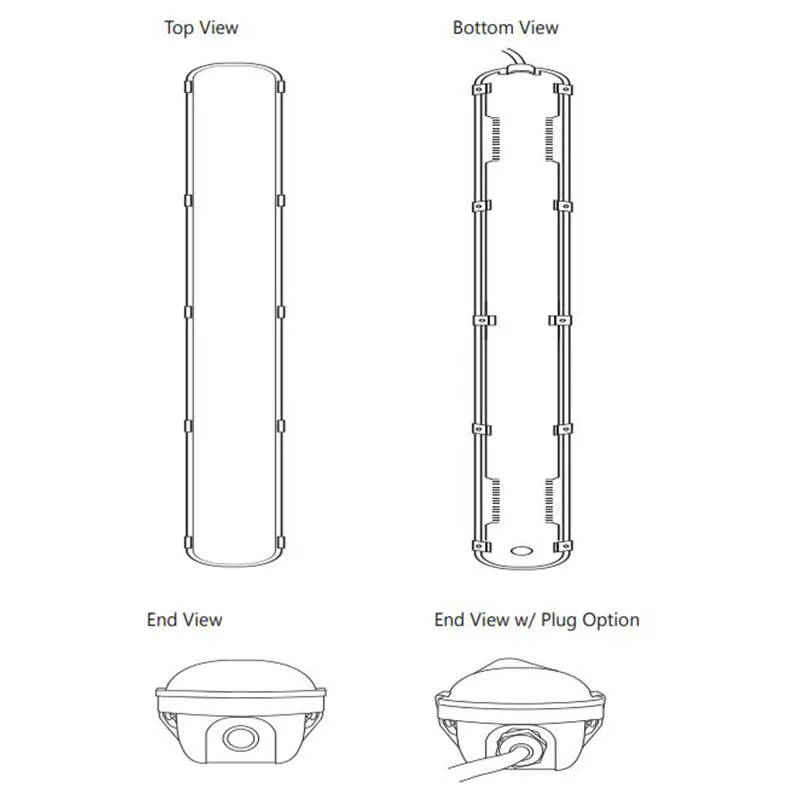

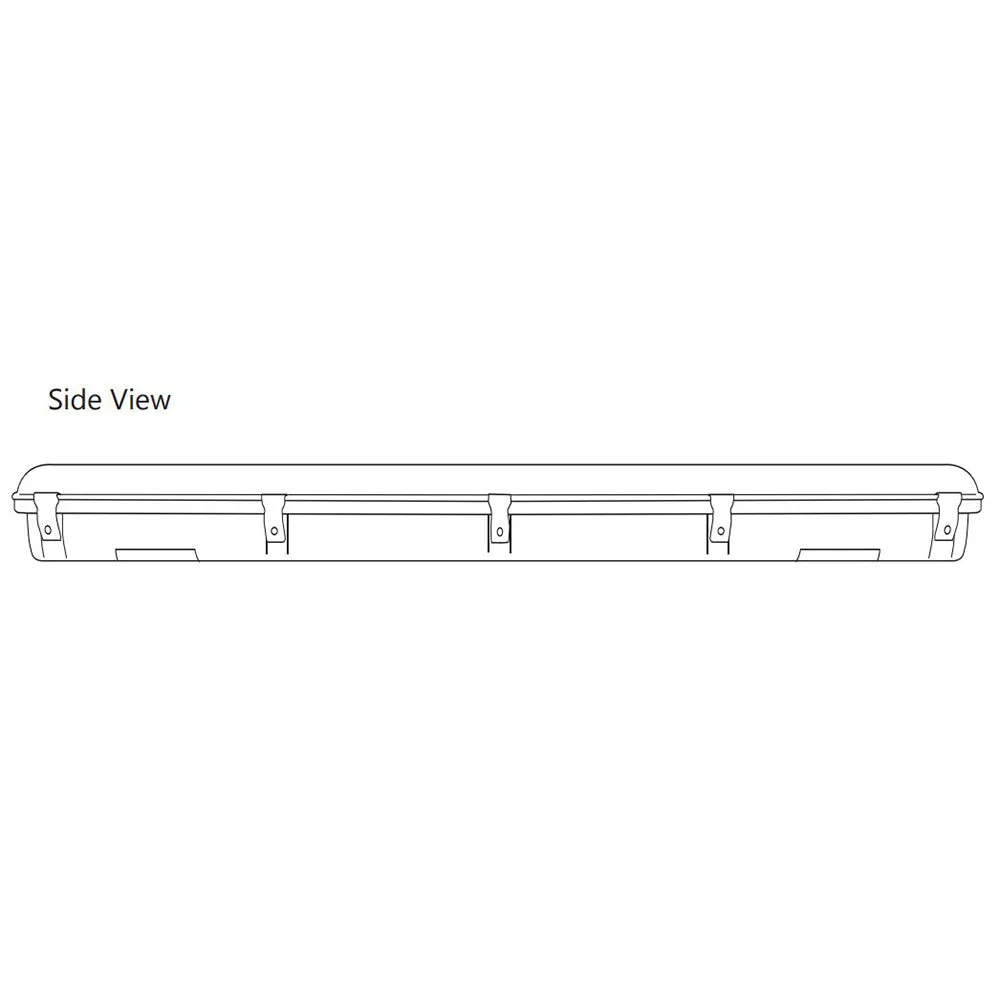

Dimensions

Notes

• Not all versions of this product may be DLC Premium qualified or DLC qualified.
• Lumens will change based on fixture selection. Consult with factory for additional options.
• Hanging kit manufactured by Gripple Inc.

Product Files
