| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Desktop |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 5 A |
| Output Power | 60 W |
| Output Voltage | 12 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Medical |
| Voltage, Input Range | 100-264 VAC |
Overview

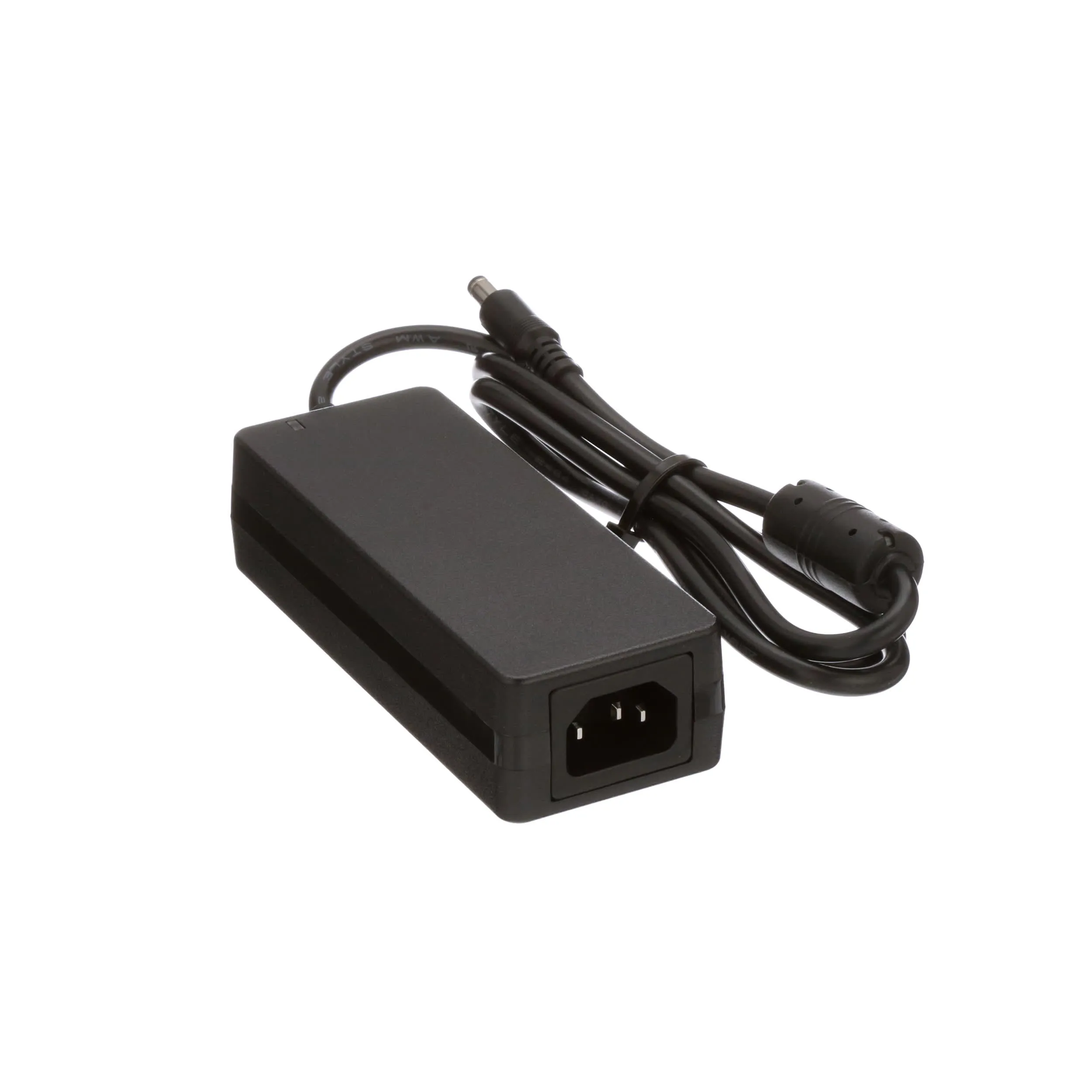

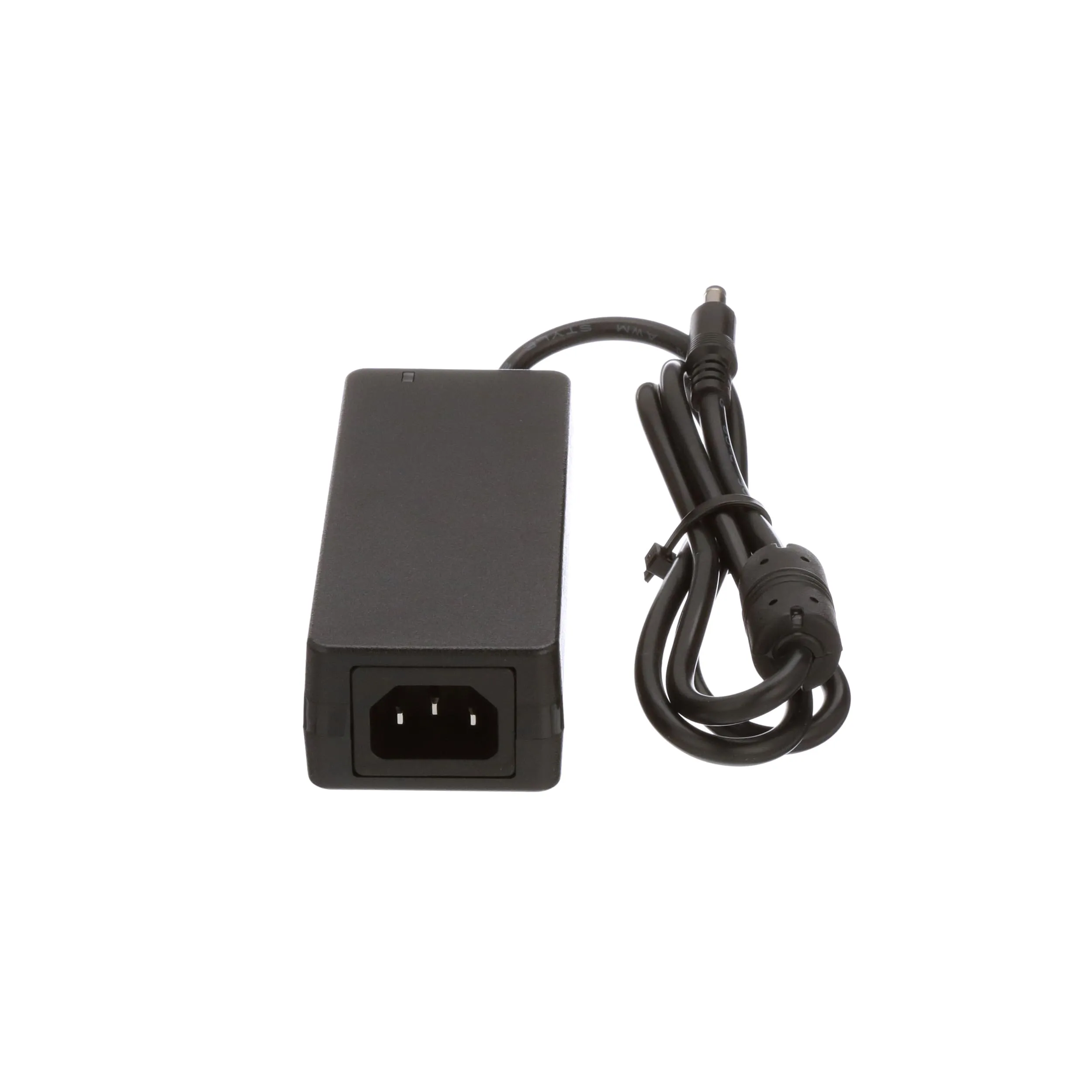

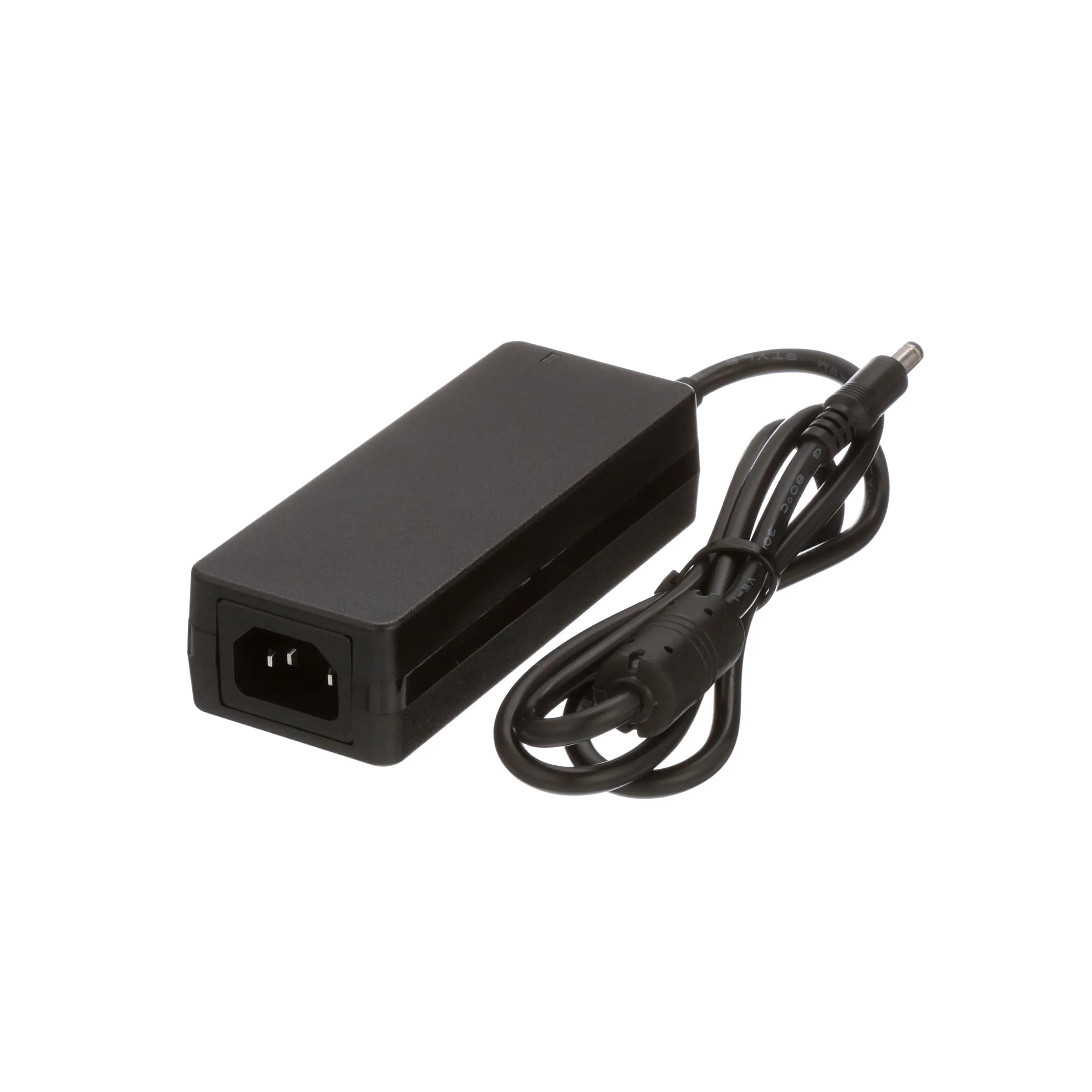

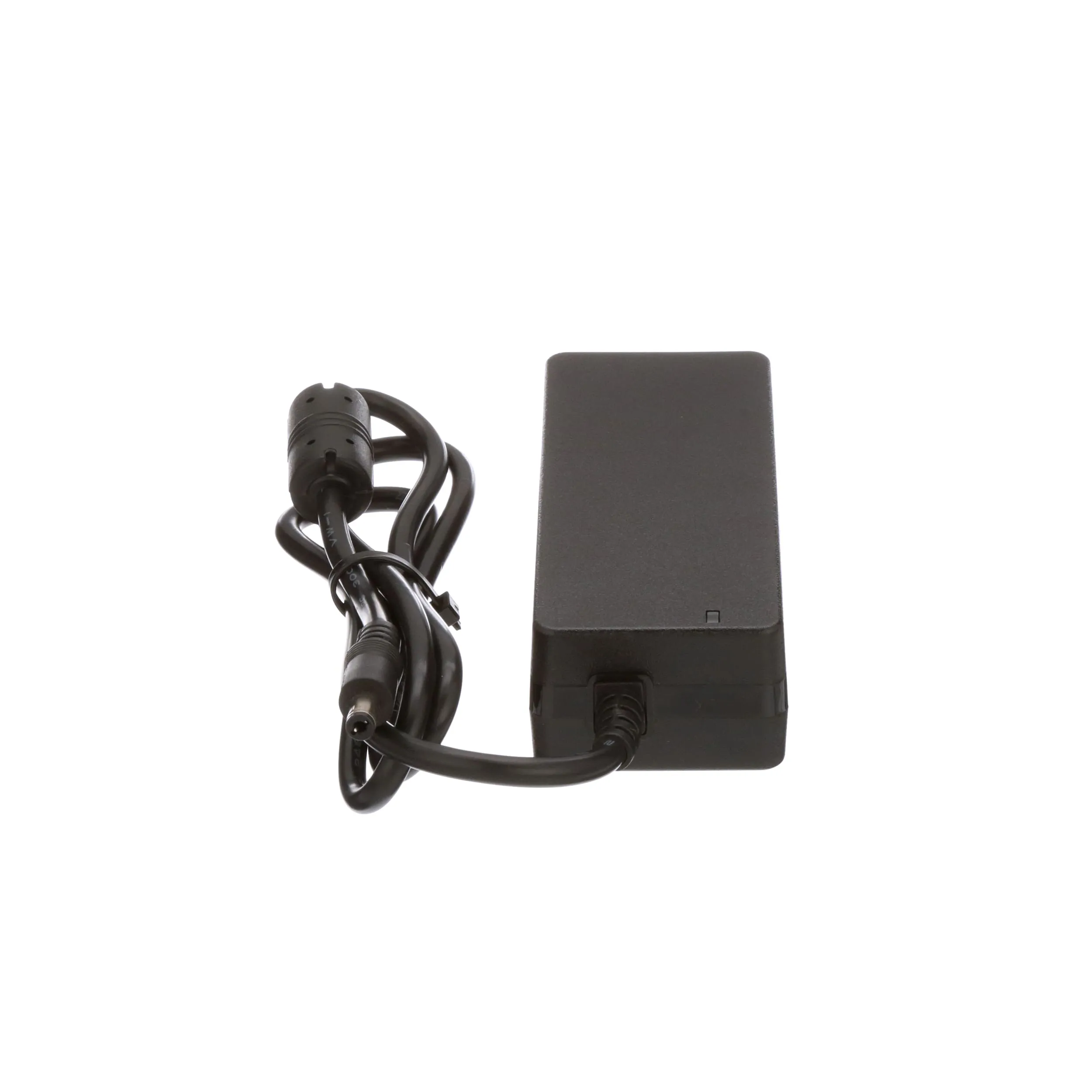

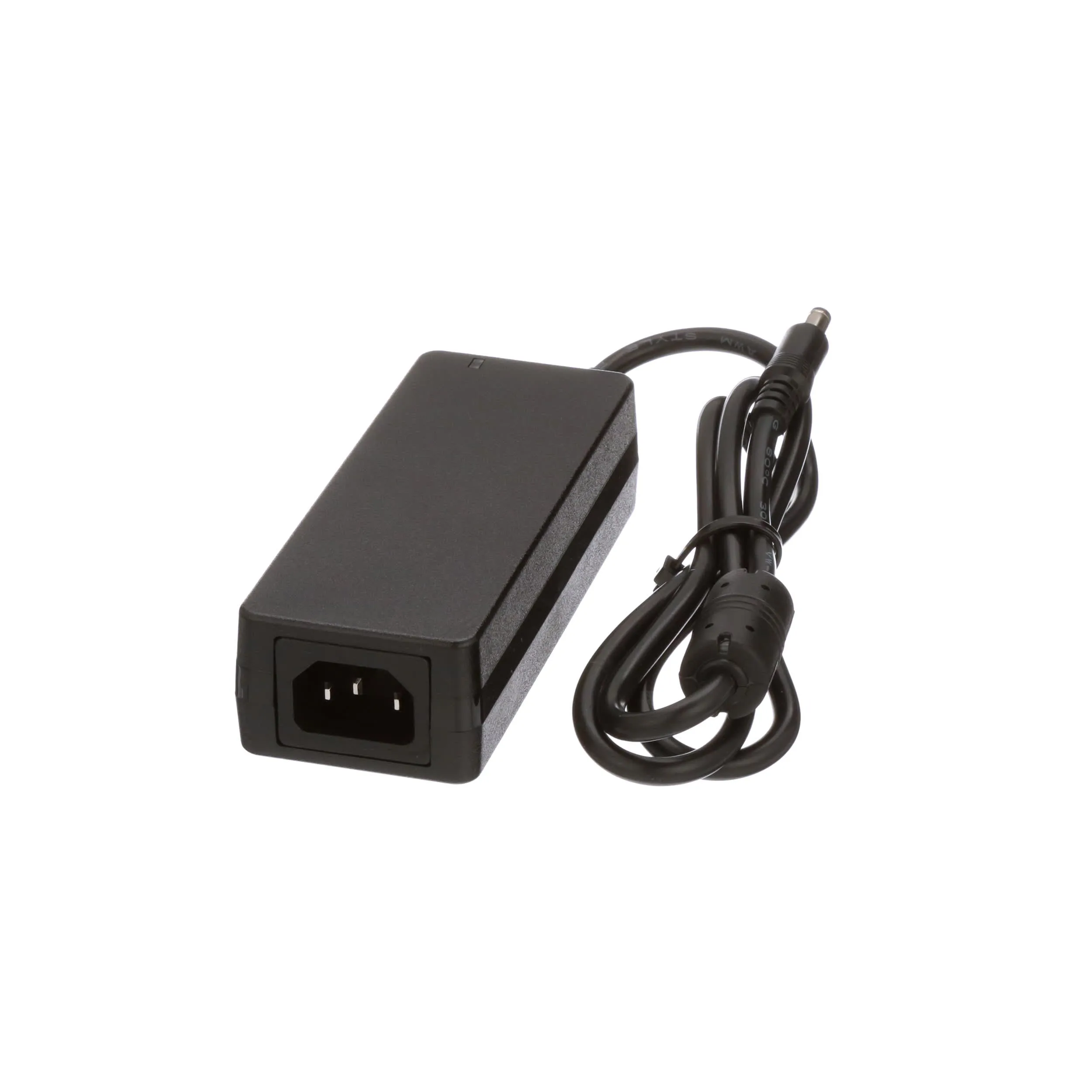

MEAN WELL GSM Series - Class II Medical Green Adaptors :
MEAN WELL is pleased to unveil the GSM Series of 90A (90W) / 120A (120W) / 160A (160W) / 220A (220W). These products all comply with the medical safety regulation IEC60601-1 3rd edition, possessing supreme characteristics such as 2 x MOPP (Means of Patient Protection) isolation level, the less than 100μA ultra low leakage current, the highest working efficiency up to 94.5% and the lower than 0.15W no load power consumption. Suitable applications include the medical equipment demanding the low leakage current, mobile clinical workstations, electric medical beds, portable oxygen concentrator, medical-use displays, biomedical examination devices, or those electrical systems in the need of low no load power consumption.
