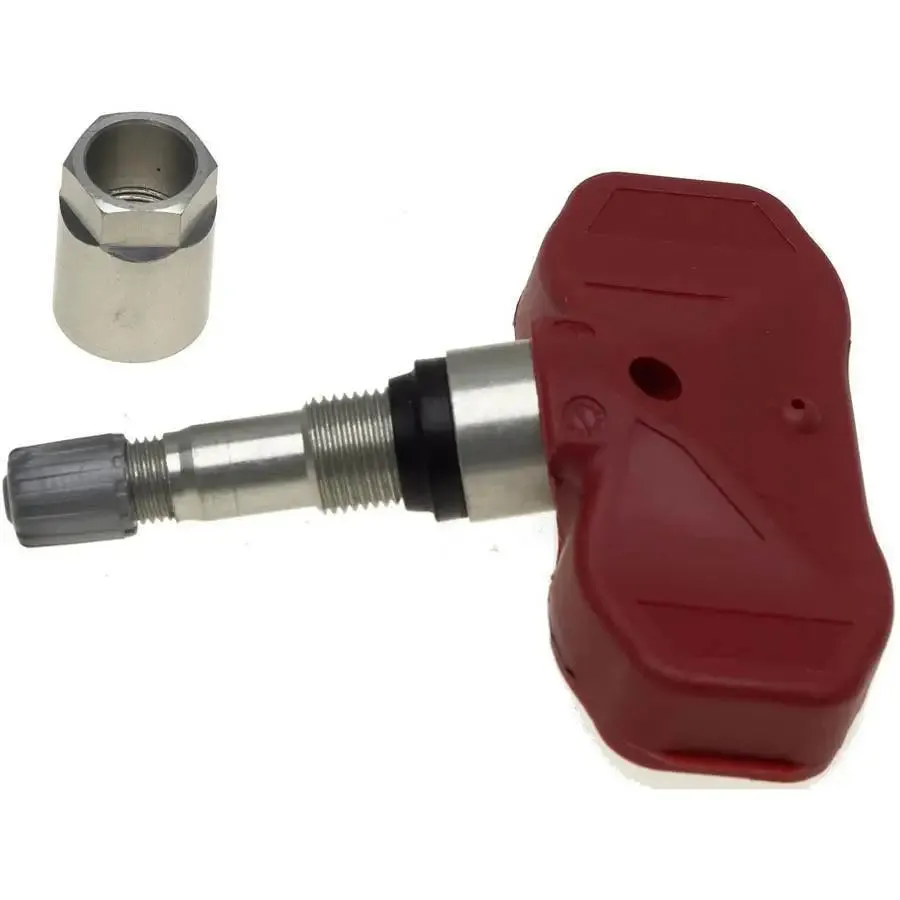

Schrader TPMS Replacement Valves meet OE quality and performance specifications. Scharder TPMS sensors measure tire pressure and temperature. Scharder offers a growing range of replacement sensors that are designed for specific vehicle makes, models and y. Transmitters are make and model specific, consult the application guide to determine the proper replacement. Replacement transmitters and valves must be torqued with a specific torque wrench. Please refer to the application guide to determine the specific torque value.
Specifications
- Part Source: Schrader International
- Frequency: 315 MHz
- Torque Nut: 7Nm-62in-lbs
- Torque Screw: N/A
- Torque Core: 0.5Nm-4in-lbs
- FCC ID: MRXGMX272RS
- Housing Color: Red
- Sensor Type: Clamp-In
- Part Design: 1 Piece
- Valve Material: Metal
- Shape: 4 - Butterfly
- IC Number: 2546A-GMX272RS
- Manufactured By: Schrader Electronics
- Sensor ID Length: 8 Digits
- Sensor ID Type: Decimal
- BUICK
Allure 07
Lacrosse 07 - CADILLAC
DTS 06
Escalade 07 Clamp-In Style Only;TRW Sensor; W/Almnm. Valve Stem
Avalanche 07 Clamp-In Style Only;TRW Sensor; W/Almnm. Valve Stem
Cobalt 08
Equinox 07
HHR 08
